Operating, cleaning and maintenance guide

Opening and closing doors

Show/hide contents

Sliding doors (PVCu and composite) – unlocking | Single doors (PVCu and composite) – locking | Double doors – unlocking | Double doors – locking | Sliding patio doors (PVCu) | Fire doors



Single doors (PVCu and composite) – unlocking

Door is closed and locked.

Turn the key or thumb turn one full turn away from the lock edge to unlock the deadlock.

Push the handle down to retract the hook bolts and the latch. This allows the door to be opened.

Some front-door fittings need a turn of the key to retract the latch bolt from outside. Turn the key away from the lock edge to retract the latch bolt.



Note: Some locks have a handle type that means to open the door from the outside you must always have a key. Please ensure you take the key with you otherwise you will not be able to get back in.

Note: The door must be fully locked to be secure.

Note: It is important that you never leave your key in the lock on the inside to prevent the risk of being locked out of the property.


Single doors (PVCu and composite) – locking

Close the unlocked door.

Lift the handle upwards as far as it will go. This engages all hook bolts.

Turn the key or thumb turn one full turn towards the lock edge to deadlock all hook bolts and the latch bolt.

Operating the snib

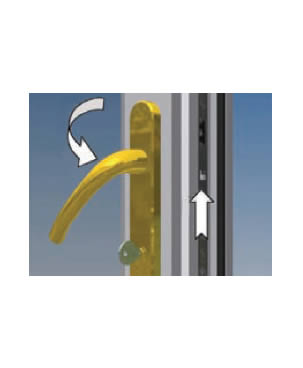

A snib is available on some doors. It is possible to keep the latch pulled back so the door can open from the outside without the key. Push the handle on the inside down to retract the latch and slide the white button (snib located in the faceplate) upwards.

exclaimation_mark
Unless you complete step 3, your door is not fully secure.
exclaimation_mark
While the snib is in use, your door is not secure.





Thumb-turn cylinders
Some doors may be fitted with a thumb-turn knob to the inside of the door. The door will lock and unlock as usual with the key from the outside. The inside knob replaces the need for a key from the inside. Turn the knob through one full turn to either look or unlock.

exclaimation_mark
Please make sure that whenever the door is shut, the handle is lifted up. This fully engages the multipoint locking system into the frame, and will help the door to keep its shape.




Double doors – unlocking

Double doors open and shut in a similar way to a single door. It is only the opening sequence that makes them different in that the main door needs to open first and close last to prevent them clashing.

Turn the key one full turn away from the lock edge to unlock the latch and hook bolts.

Push the handle down to pull back the latch and hook bolt. This allows the door to be opened.

To open the secondary door, simply push the handle down to unlock the top and bottom shootbolts and turn the key one full turn away from the lock edge.


Double doors – locking

Double doors open and shut in a similar way to a single door. The difference is that the main door cannot be locked without the secondary door shootbolts also being locked.

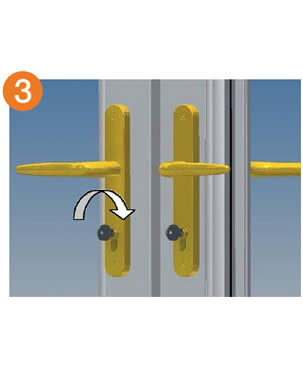

Close the secondary door, lift the handle to lock the shootbolts into their keeps and lock by turning the key one full turn towards the lock.

Close the main door and lift the handle to lock both shootbolts and hook locks.

Turning the key one full turn towards the lock engages the deadlock.

Note: It is important that you never leave the key in the lock to prevent the risk of being locked out of the property.

exclaimation_mark
Unless step 3 is done your door is not fully secure.

Sliding patio doors (PVCu)

Sliding doors have two locking mechanisms – either one or two plunger locks to the central meeting stiles to lock the panes together and a four point lock jamb at the side of the frame.

Plunger lock

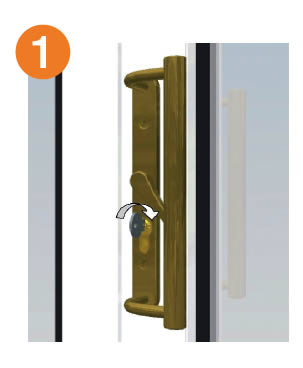

Begin by unlocking the plunger locks. To unlock the centre plunger lock, turn the key until the plunger retracts.

To lock, once the sliding door is closed, simply push the plunger closed.

Jamb lock
Turn the key one full turn away from the lock edge to unlock.

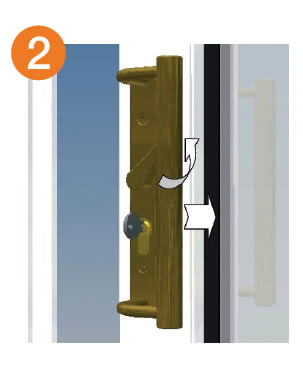

Lift the lever fully to unlock the lock bolts from the jamb. Locking is simply the reverse action.




Fire doors

All fire doors will have been fitted with either an overhead closer or a concealed door closer, which closes the door automatically.


Do not interfere with or remove the door closer, and make sure the door is always kept closed.

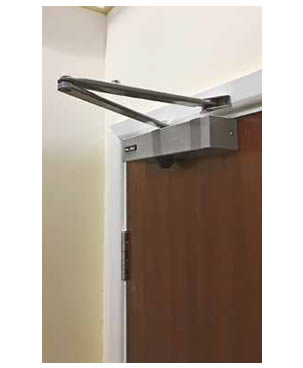

Overhead door closer.

Concealed door closer.
